Three Wany Phase Separator

Three Wany Phase Separator

PREV：Chamber Surge TankNEXT：No next article

Specification

Size 42" ID x 10' - 0" seam/seam
Service Sour
Design Pressure 1,332 psig @ 120 deg. C (248 deg. F)
Working Temperature Low: -28.9 deg. C (-20deg. F)
High: 120 deg. C (248 deg. F)
Environmental Temperature Low: -28.9 deg. C (-20deg. F)
High: 60 deg. C (140 deg. F)
Shell Material SA-516-70 Carbon Steel
Head Material SA-516-70 Carbon Steel
Vessel Couplings SA-105, 6000#
External Specification Colour Specification Sandblasted to white finish
Inorganic zinc primer (3-4 mils DFT)
Epoxy intermediate coat (4-6 mils DFT)
Acrylic Polyurethane Top Coat (4-6 mils DFT)
Nozzle Specification SA-105, ANSI 600# RFWN & 150# RFWN Carbon Steel Flanges
Code Radiograph RT-1 and stress relieve
Estimated weight (dry weight) 14,400 kg
Estimated Dimensions Length: 20' - 0"
Width: 8' - 0"
Height: 8' - 6"
Capacity
Vessel at half full-Gas 56 mmscfd at 1,440 psig operating pressure
Vessel at half full-Oil 6,969 bpd total liquid with 2.0 minute retention
Vessel at half full-Vessel Internals Defoaming Plates
Mist Extractor Element
Internal Anti-surge Baffles
Liquid Outlet Vortex Breakers
Metering - Gas Daniels Senior Orifice Fitting (5.761" bore) c/w Three pen Recorder, 24 hour /7 day adjustable clock and key, 0 - 400" WC, 0 - 250 degF , 1500 psig static
Metering - Oil One (1) Electronic Totalizer mounted on 1" Turbine Meter body (170 to 1,700 BBL/D)
One (1) Electronic Totalizer mounted on 2" Turbine Meter body (1300 to 13,000 BBL/D)
Metering - Water One (1) Electronic Totalizer mounted on 1" Turbine Meter body (170 to 1,700 BBL/D)
Instrumentation Two (2) Fisher Liquid Level Controllers
One (1) Thermometer 0-250F
One (1) Pressure Gauge 0 - 2,000 psig
Two (2) Liquid Level Gauges
Control Valves - Gas One (1) 3" Fisher Back Pressure Control Valve
Control Valves - Oil One (1) 2" Fisher Liquid Level Control Valve
Control Valves - Water One (1) 2" Fisher Liquid Level Control Valve
Control Valves - Safety One (1) 3" x 4" Pressure Relief Valve set at 1350 Psig
One (1) 2" Rupture Disc
Inlet Connection 3" Fig 602 Hammer Union Thread
Outlet Connection Oil - 3" Fig 602 Hammer Union Wing
Water - 2" Fig 602 Hammer Union Wing
Gas - 3" Fig 602 Hammer Union Wing
Vent - 4" Fig 602 Hammer Union Wing
Miscellaneous Shrinkage Tester Manual Ball Type Isolation Valves (AOP)
One (1) Set (29 plates) of 316 Stainless Steel Orifice Plates (0.5 to 4.0" in .125 increments)
Instrument Air Knockout Pot
Crash Frame with Lifting Connections
Special sling for lifting
Standards - Vessel ASME Section VIII, Div. 1, Latest Revision Addenda
Standards - Piping ANSI B31.3
Standards - Welding ANSI / AWS D1.1
Standards - Flanges & Fittings & Gaskets ASME / ANSI B16.5
Standards - Sour Service NACE MR.0175

Details

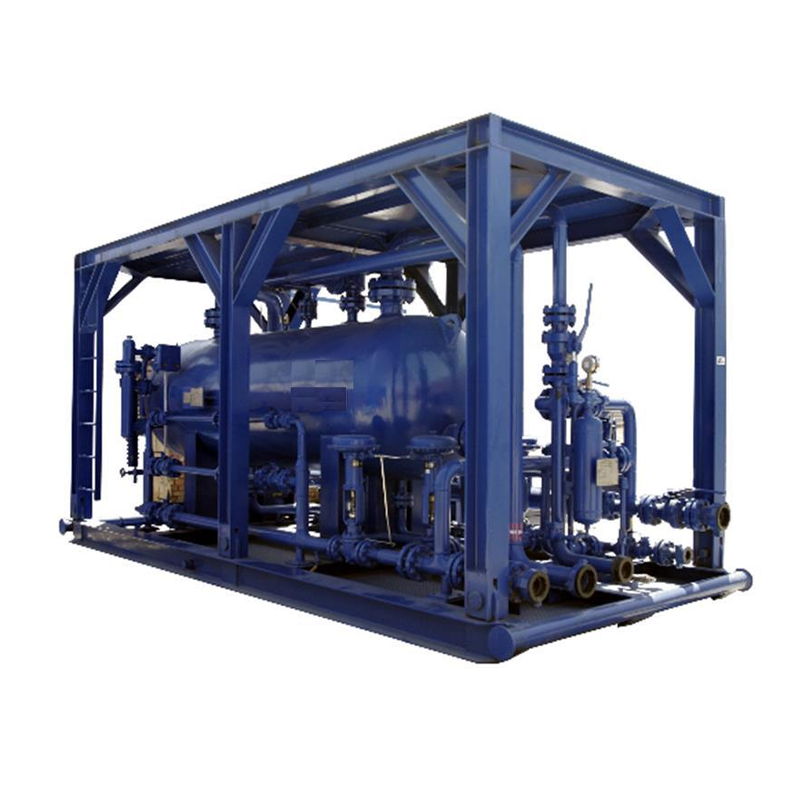

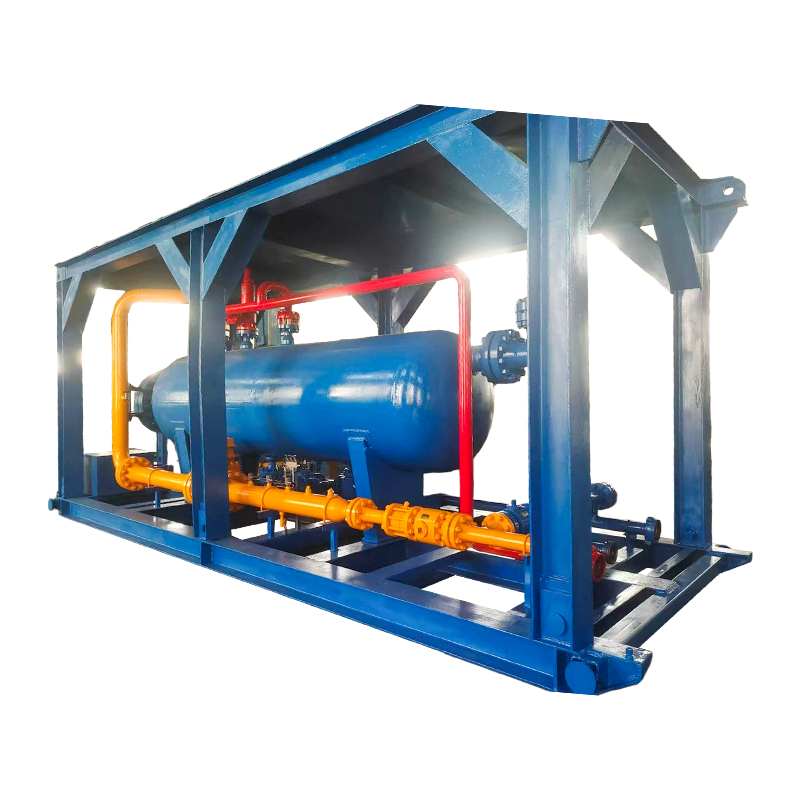

Horizontal, monotube, three-phase test separator with automated control of gas pressure, gas/oil interface and oil/water interface. The unit is mounted on a standard 1CC container-sized structural skid, complete with drip pan, crash frame and a three-coat offshore-type paint system, and is rated for sour (H₂S) service. It is fully manifolded to deliver complete operational flexibility, including the ability to bypass and/or co-mingle oil, gas, and water. The package comes with inlet and outlet hammer union connections.
