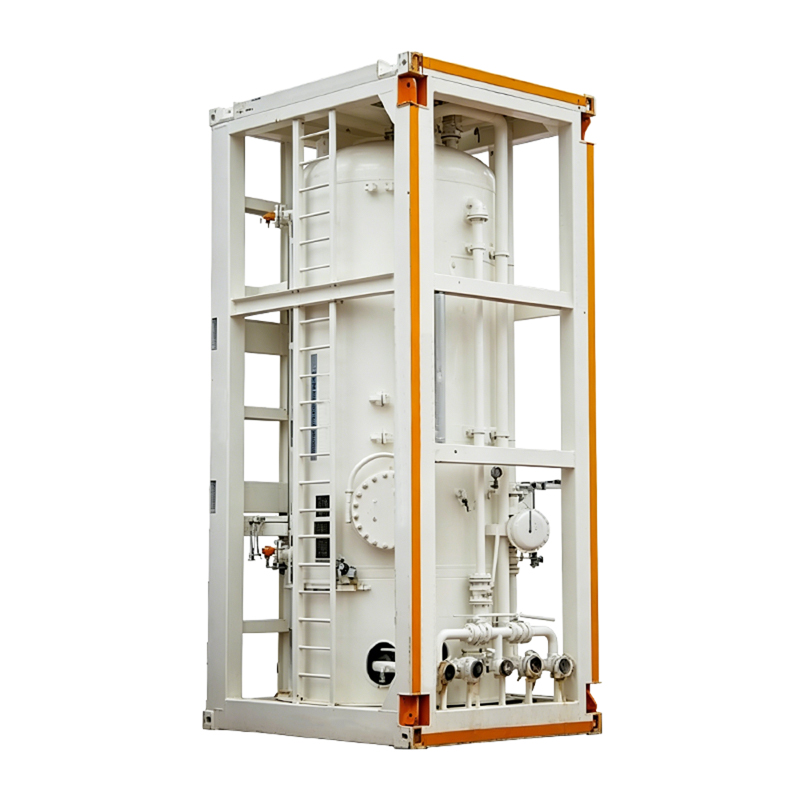

Chamber Surge Tank

Chamber Surge Tank

PREV：No previous articleNEXT：Three Wany Phase Separator

Specification

Process design pressure at 250°F (psi/MPa) 250/ 1.725
Process design temperature (°F/°C) -20° to 250°/ -29° to 121°
Maximum working pressure at 250°F (psi/MPa) 250 /1.725
Maximum oil rate (normal liquid level) (bbl/d, cu m/d) 40,000/6,359
Maximum gas rate (normal liquid level) (MM cu ft/d, MM cu m/d) 5/ 0.142
Compartments Twin
Capacity (bbls/cu m) 100 /16
Service conditions H₂S / CO₂
Outside dimensions (L × W × H) (ft/m) 19.88 × 8.00 × 9.50/ 6.058 × 2.438 × 2.896
Approximate empty weight (lb/kg) 19,842/ 9,000
Fluid inlet 3-in. Figure 602 union thread
Fluid outlet - gas 3-in. Figure 602 union wing
Fluid outlet - oil 3-in. Figure 602 union wing
Fluid outlet - drain 3-in. Figure 602 union wing
Fluid outlet - vent 3-in. Figure 602 union wing
Steam inlet 2-in. Figure 602 union thread
Steam outlet 2-in. Figure 602 union wing
Full-bore valves and bypass manifold Yes
Pressure sensing points Oil and water lines
Temperature sensing points Oil and water lines
Fluid sampling points Oil and water lines
Gas measurement equipment Not applicable
Oil measurement equipment Calibrated sight glass
Water measurement equipment Calibrated sight glass
Oil heating coil Applicable
Vessel pressure control equipment on gas Line 3-in. Fail-open pneumatic pressure control valve with Fisher pressure controller
Safety devices Pressure safety valve and Rupture Disc mounted directly on independent vessel nozzles with 3-in. vent line to base skid edge
Hi-Lo level alarm system with twin air horns
2 × grounding points on opposite diagonals of base skid
Vessel manway 20-in. diameter, ANSI 150RF flange, located at rear of vessel
Standards ASME VIII Div I
ANSI B.31.3
NACE MR-01-75

Details

The well test surge tank is a pressure-containing, two-phase, 100-barrel, twin-compartment vertical vessel. It is used to measure liquid flow and/or prove meters during a well test, and is required when handling sour crude where atmospheric venting is prohibited. The surge tank can also be utilized as a second-stage, two-phase separator. Overpressure protection for the vessel is provided by two independent safety relief valves installed on a contained vent line.
